Loudspeaker visual dust removal system

An automated dust removal solution specifically designed for speaker line production, integrating Visual tracking positioning technology and non-contact dust removal process, precise adaptation Production demand for different specifications of speakers. With a production capacity of 1800 pieces per hour, the dust removal process is automated and standardized. This thoroughly removes dust, iron filings, and other impurities from the product, ensuring the cleanliness of the finished speaker and guaranteeing stable product quality and noise-free operation.

Send email to us

Main Performance

Product Tags

Product positioning

Thoroughly remove dust
An automated dust removal solution specifically designed for speaker assembly lines, using vision and algorithms for precise positioning and adjustable suction to thoroughly remove iron filings, dust, and other impurities attracted by magnets, ensuring stable speaker quality and pure sound.

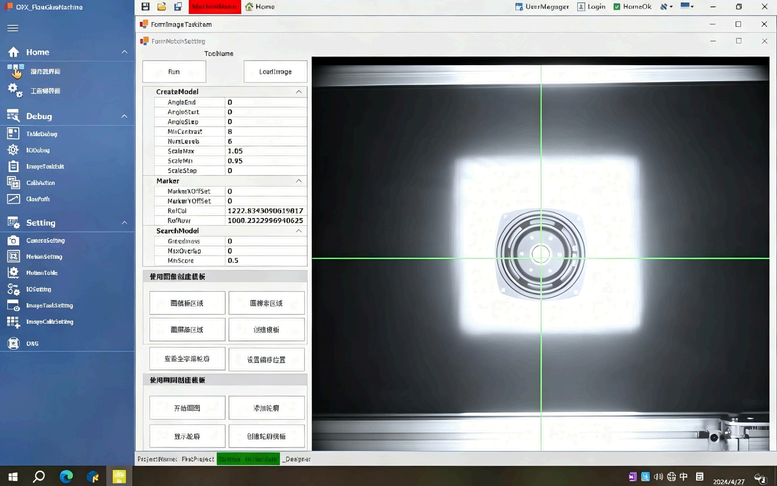

Advanced visual system
Equipped with a 5-megapixel global camera with an ultra-high resolution of 2448 × 2048, and industrial-grade image processing algorithms. It integrates visual tracking positioning technology with non-contact dust removal process, precisely adapting to the needs of speaker assembly lines of different specifications.

High precision robotic arm
The planar articulated robotic arm moves swiftly and flexibly, with a repeatability accuracy of ±0.02mm and industrial-grade stability. Equipped with an ultra-high resolution camera and precise algorithm positioning, it can accurately position and perform dust removal on each speaker on the assembly line with a production capacity of 1800 PCS/H.

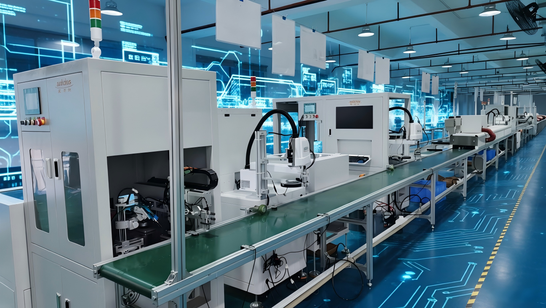

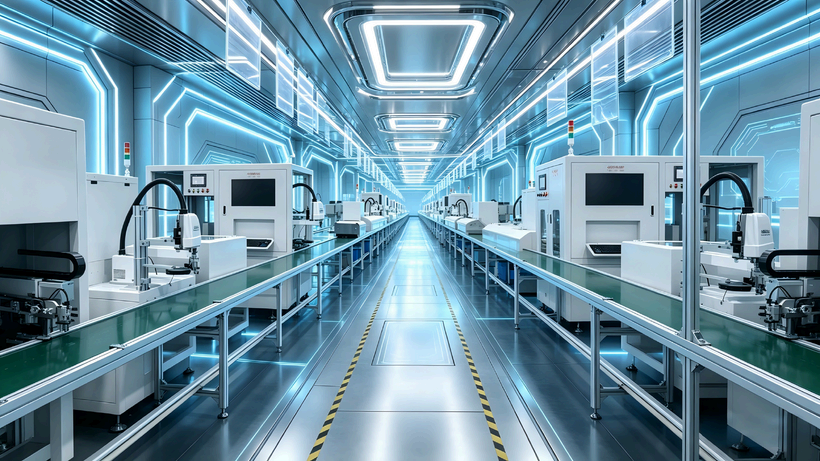

Combined with other equipment, it forms a complete automated production line.

When used in conjunction with other equipment on a fully automated speaker assembly line, including automatic T-plate attaching machines, glue dispensing machines, magnetic gauge attaching machines, magnet adding machines, glue dispensing machines, and magnetic gauge removal machines, it can improve production efficiency, reduce defect rates, and avoid product quality instability caused by human error.

Technical Specifications

Equipment Model	LH01X-XC02
Equipment Dimension	700 × 600 × 1550 mm
Control System	Coordinated operation of vision control system and robotic arm control system
Vision Configuration	5-megapixel global exposure camera, resolution 2448 × 2048, supporting real-time image processing and communication
Interaction Mode	Industrial Ethernet communication
Mass Production Capacity	1800 pcs/h, suitable for high-speed production lines
Power Supply Specification	AC220V 50Hz, rated power 0.8 kW
Equipment Parameters	Weight: 120 kg; stable working air pressure > 0.5 MPa, stable and reliable operation

Our Advantages

Advantage 1
1.Equipped with a 5-megapixel global camera with an ultra-high resolution of 2448 × 2048, and industrial-grade image processing algorithms. It integrates visual tracking positioning technology with non-contact dust removal process, precisely adapting to the needs of speaker assembly lines of different specifications.

Advantage 2
The planar articulated robotic arm moves swiftly and flexibly, with a repeatability accuracy of ±0.02mm and industrial-grade stability. Equipped with an ultra-high resolution camera and precise algorithm positioning, it can accurately position and perform dust removal on each speaker on the assembly line with a production capacity of 1800 PCS/H.

Advantage 3
An automated dust removal solution specifically designed for speaker assembly lines, using vision and algorithms for precise positioning and adjustable suction to thoroughly remove iron filings, dust, and other impurities attracted by magnets, ensuring stable speaker quality and pure sound.
