TB900X tweeter match up to B&C DE900 HF driver
Unique advantages
◆ 12 exclusive processes: from ultra-fine carbon fiber weaving to diamond molecule deposition, zero-tolerance quality control throughout the entire process!
◆ Data crushing: diaphragm hardness/damping/rigidity in three dimensions surpass traditional metal units !
◆ Acoustic supremacy: The world's first tweeter driver to achieve "zero-division vibration"!
◆ Applicable fields: million-level Hi-End speakers/ten thousand-person stadium accoustic system/aerospace-level monitoring system !

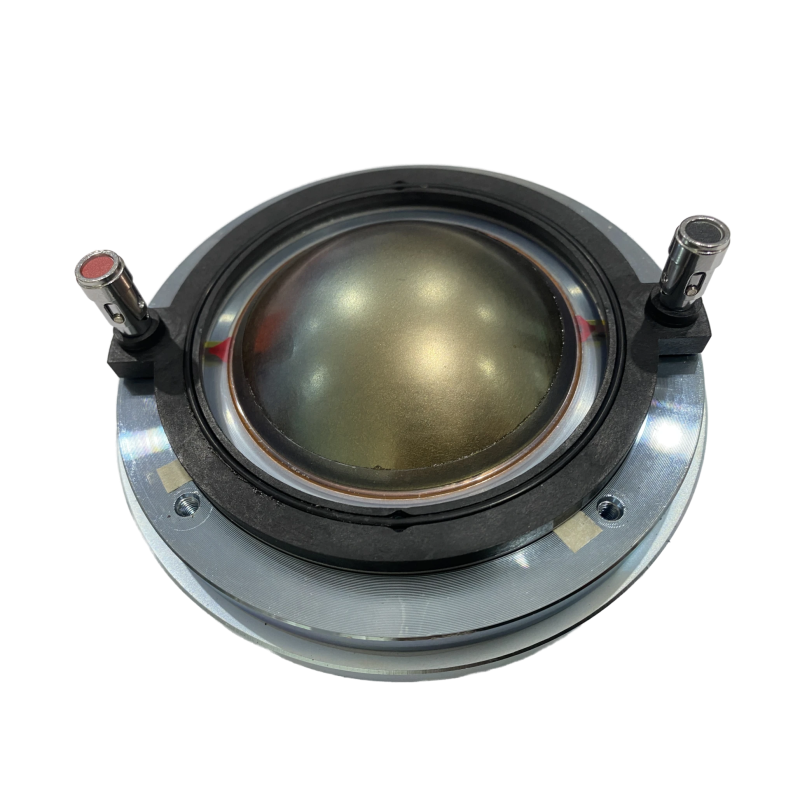

Core technology: diamond carbon fiber composite diaphragm
◆ Using " nano-penetration coating cutting-edge technology " , diamond molecules are allowed to penetrate into every gap of carbon fiber like " liquid " , and through high-energy particle bombardment, the molecules are bonded, and the multi-layer carbon fiber substrate and diamond coating are melted into a " seamless monomer structure " ! So it's not plating, it's rebirth.
◆ " Three-dimensional steel skeleton " : Internal carbon fiber mesh skeleton + surface 2μm diamond armor, rigidity increased by 400% .
◆ " Hardness and Softness " : Mohs hardness 10 + damping coefficient 0.25 , residual vibration attenuation speed reaches 0.8ms (traditional diaphragm 5ms ), Completely eliminate the " metallic taste " ;
◆ " Acoustic Zero Loss " : One-piece molding eliminates 99% of interface reflections, and the high-frequency purity is comparable to that of an electrostatic unit!
Each diaphragm undergoes 36 hours of supercritical process + 3D-CT inspection.

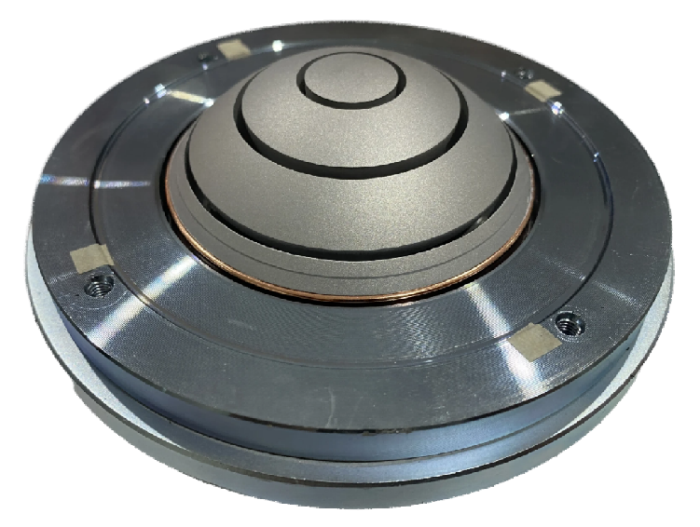

CNC precision machining of aerospace aluminum phase plug
◆ CNC Aerospace Aluminum Phase Plug: 0.005mm precision acoustic wave guide, diffusion angle accurate to ± 1 ° ;
◆ 1.4" Compression Throat: 98% sound energy conversion efficiency and 108.5dB sensitivity shake the whole audience!
◆ N38H NdFeB megnet: 1.8 Tesla magnetic flux density, driving force increased by 200% , transient response 0.03ms ;
◆ 75mm titanium voice coil + double suspension: 220W continuous power to withstand extreme sound pressure, 1000 hours of violent testing,rock-solid;

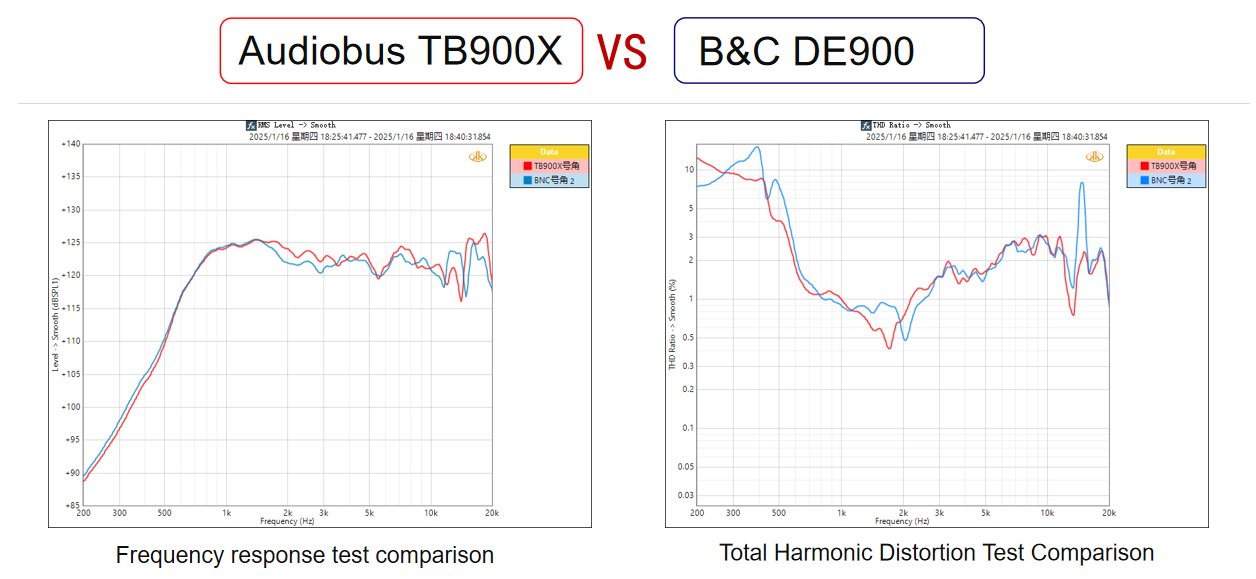

Performance

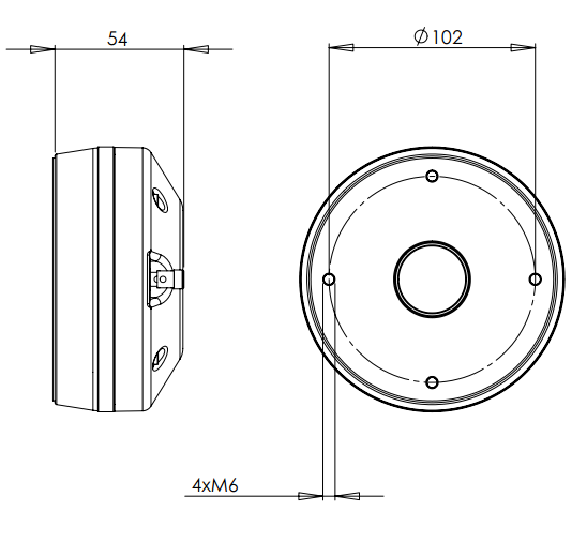

| Installation and transportation information
102 mm ( 4 in) diameter on 4 90 ° M6 holes |
|
| Additional details | 4 x M6 screw hole with bolts and nuts |

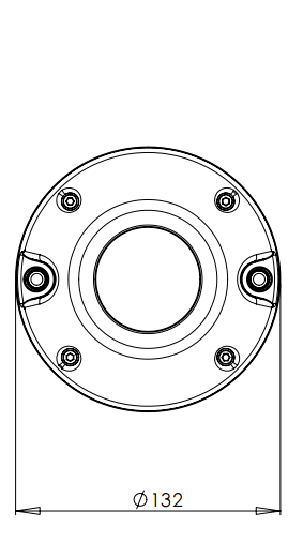

| Overall diameter | 132 mm ( 5.2 in) |
| high | 54 mm ( 2.1 in) |
| net weight | 2.35 kg ( 5.18 lbs) |
| unit | individual |
| Packing weight | 2.45 kg ( 5.4 lbs) |
| Packing volumn | 200×200×75 mm |
| Technical Parameters | |
| Throat diameter | 36 mm |
| impedance | 8Ω |
| Minimum impedance | 7.8Ω |
| Rated Power | 110W |
| Continuous processing power | 220W |
| Sensitivity | 108.5 dB |
| Frequency range | 0.5 KHz-20 KHz |
| Recommended crossover | 1.2 KHz |
| Voice coil diameter | 75 mm |
| Voice coil wire | Copper Clad Aluminum |
| inductance | 0.14mH |
| Diaphragm material | ta-C diamond carbon fiber composite diaphragm |
| Magnetic flux density | 1.8T |
| Maximum frequency range | 20 KHz |
| Minimum frequency range | 500 Hz |
Professional evaluation
◆ sound engineer: " It brings out the details buried in the master tape, like listening to the uncompressed original universe! "
◆ Audiophiles: " The high notes are like melting iceberg water passing through the eardrum, sharp but without a single burr! "
◆ engineer: " There were 100,000 people at the scene, and the vibrations of the ceiling cymbals seemed to explode in my ears! "
